ข้อมูลจำเพาะทางเทคนิค (Technical Specification) ของ EMC – Foot Valve Series F522-08-L Port Size 1/4″ (5/2-way)
วาล์วเท้าเหยียบ รุ่น F522-08-L Lockable ที่ใช้งานในระบบนิวเมติกส์ถูกใช้งานเป็นหลักในการควบคุมกระบอกลม ประเภทที่พบเห็นได้บ่อยคือ 3/2-way, 4/2-way และ 5/2-way
DOWNLOAD DATA SHEET
f522-08-l seriesSpecifications
Model | F522-08-L |
Working medium | Clean Air (After 40 µm filtration) |
Acting type | External control |
Lubrication | Not required |
Working pressure (MPa) | 0-0.8 |
Max pressure (MPa) | 1.2 |
Working temperature (°C) | -5-60 |
Port size | 1/8″, 1/4″ |

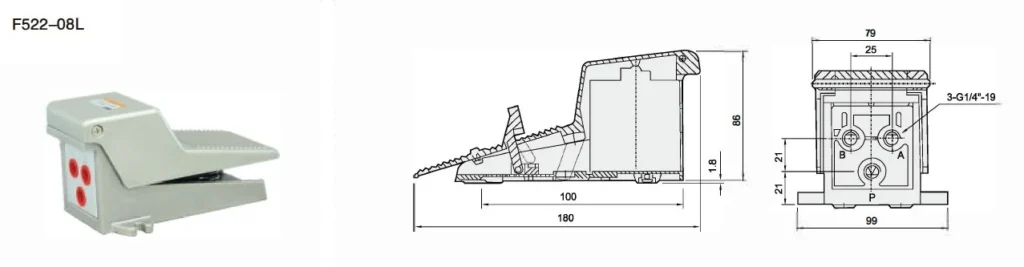

Main Dimension
![](https://i0.wp.com/factocomponents.co.th/wp-content/uploads/2024/05/F522-08-L-Main-Dimension-1.webp?fit=1020%2C266&ssl=1)
