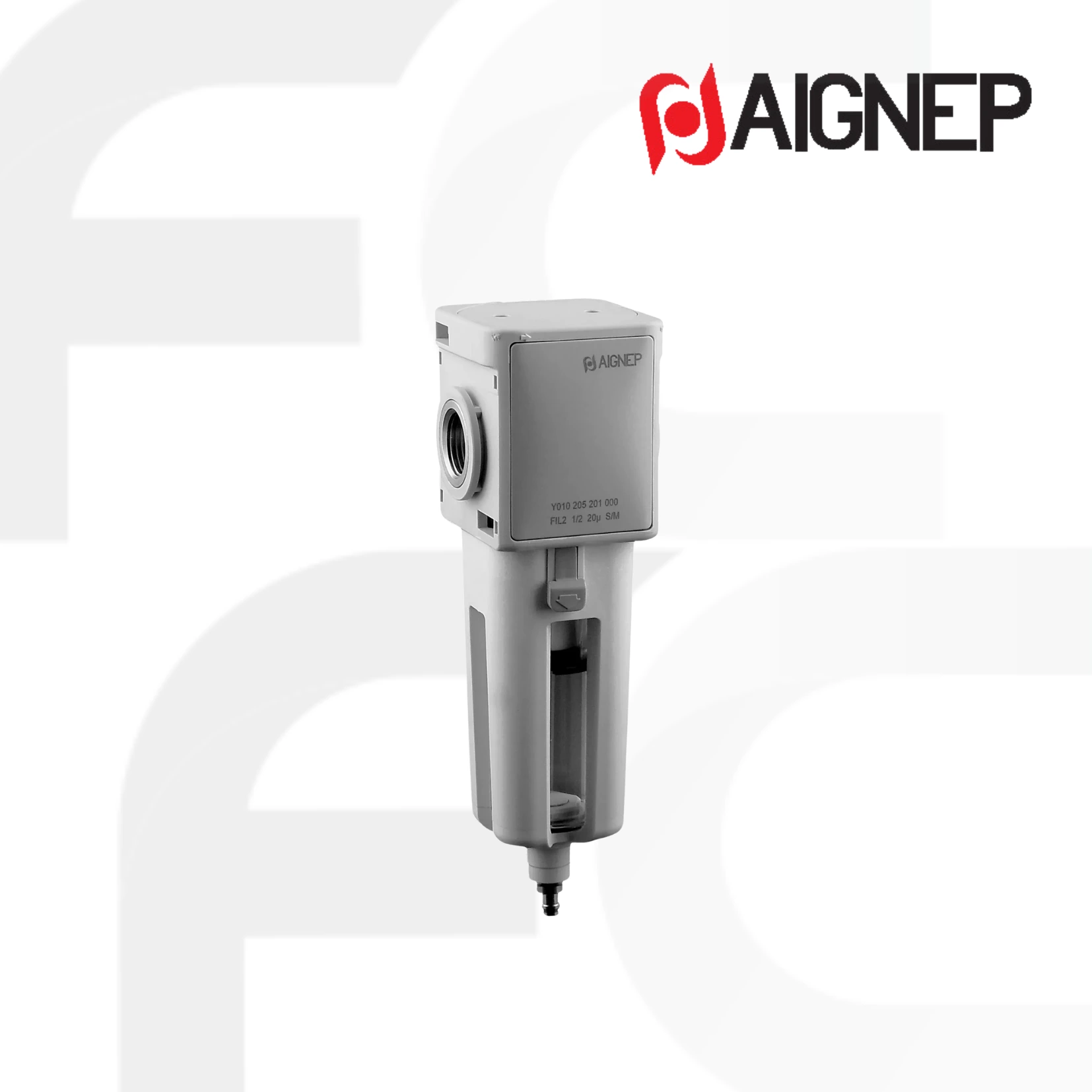

ข้อมูลจำเพาะทางเทคนิค (Technical Specification) ของ ตัวกรองและปรับแรงดันลม Aignep – Filter Filtro Y010 EVO series
Filters “F”, Regulators “R” andLubricators “L” are available in 4 sizes according to the flow and various combinations.
Size 0 “Mini” in 1/8-1/4 is constructed from high resistance & light technopolymers.
Sizes 1-2-3 is constructed from robust metal body and technopolymeric bowl form 1/8 to 1”.
Fixing accessories to complete.
On demand FDA Filters
DOWNLOAD DATA SHEET
Y010 SERIES| รหัสสินค้า | ขนาด | เกลียว | อัตตราการไหล |
| Y010 103 201 000 | FIL 1 | 1/4″ | 20 μm 2500 Nl/min |
| Y010 104 201 000 | FIL 1 | 3/8″ | 20 μm 2500 Nl/min |
| Y010 104 202 000 | FIL 1 | 3/8″ | 20 μm 2500 Nl/min |
| Y010 204 201 000 | FIL 2 | 3/8″ | 20 μm 4100 Nl/min |
| Y010 205 201 000 | FIL 2 | 1/2″ | 20 μm 4100 Nl/min |
| Y010 205 202 000 | FIL 2 | 1/2″ | 20 μm 4100 Nl/min |
| Y010 307 201 000 | FIL 3 | 3/4″ | 20 μm 7900 Nl/min |
| Y010 309 201 000 | FIL 3 | 1″ | 20 μm 7900 Nl/min |
| Y010 309 202 000 | FIL 3 | 1″ | 20 μm 7900 Nl/min |
DIMENSIONS
Main advantages
- Modularity
- Sharp and reliable regulation
- High Flow
- Robust with light weight
- Coalescing Filters
- Silicon Free
Applications
- Pneumatic Automation
- Compressed Air Circuit
- Compressors
- Compressed Air Pipeline
